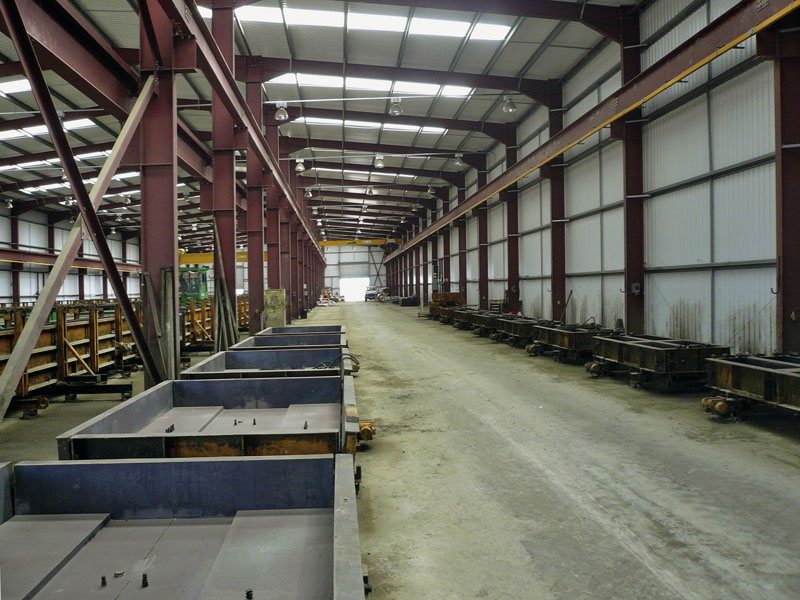

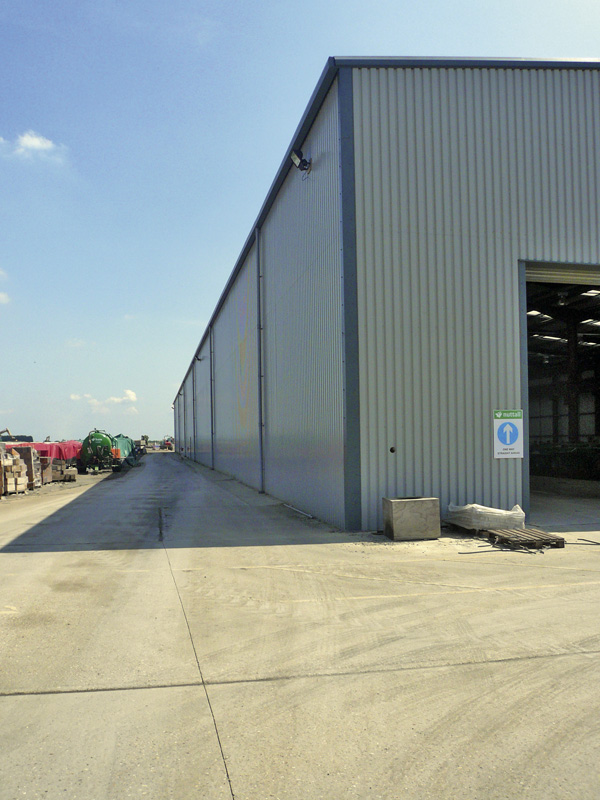

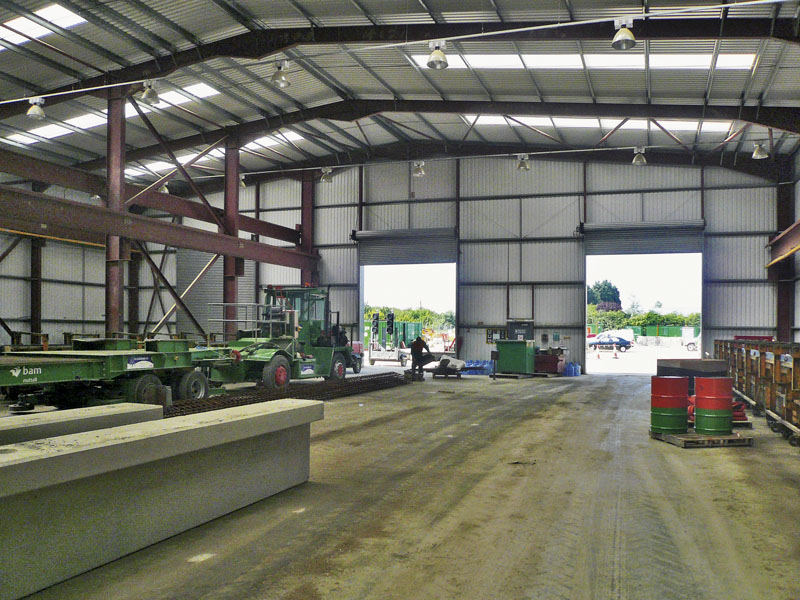

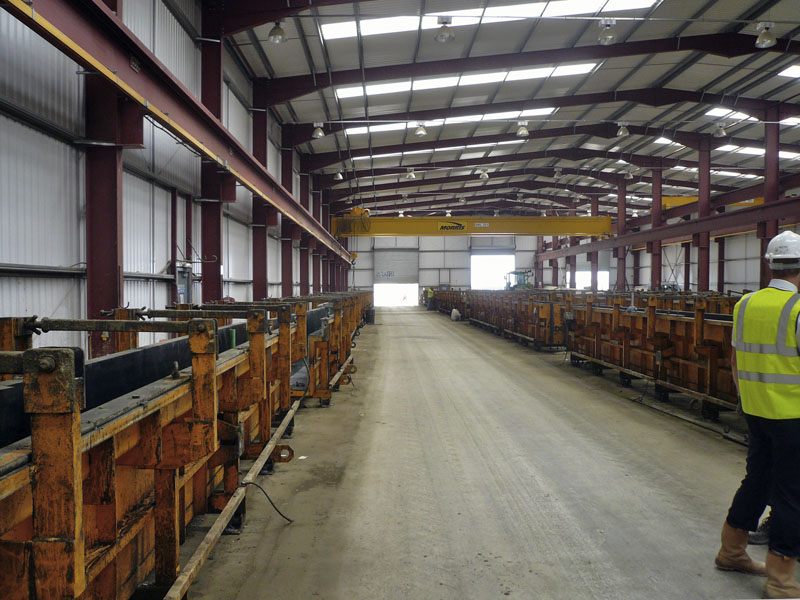

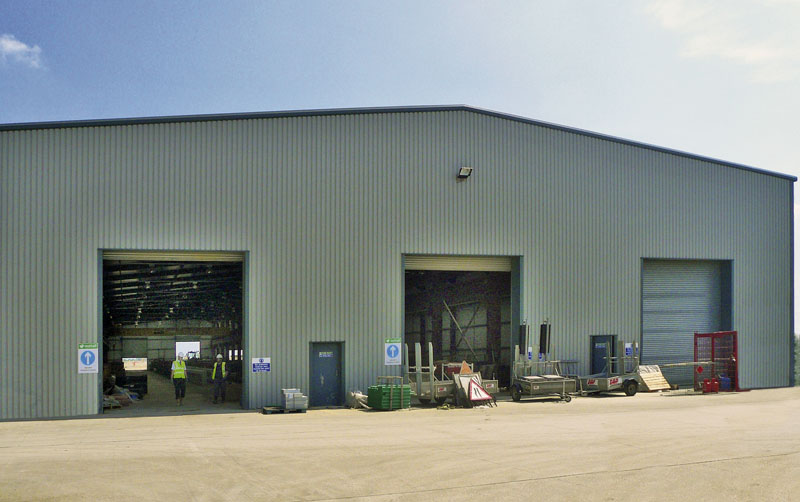

 Structure designed for production of "slip form " concrete sections to a guided bus way project.
Internal width has a 20 meter free span and a 10 meter free span
Overall length is approx 100.00 metres
Overall width is approx 30.45 metres
Overall height to eves 8.38 metres
The free span height is 6.5 metres
Building is designed to operate with and includes

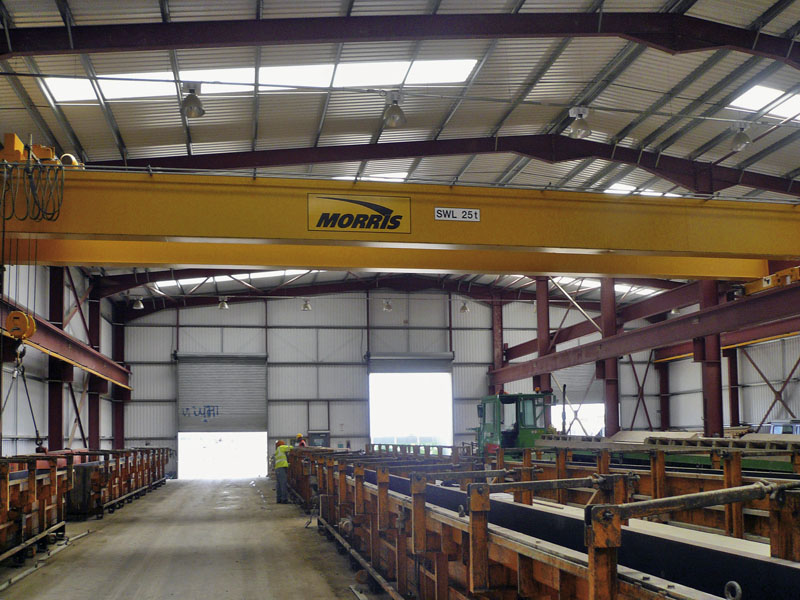

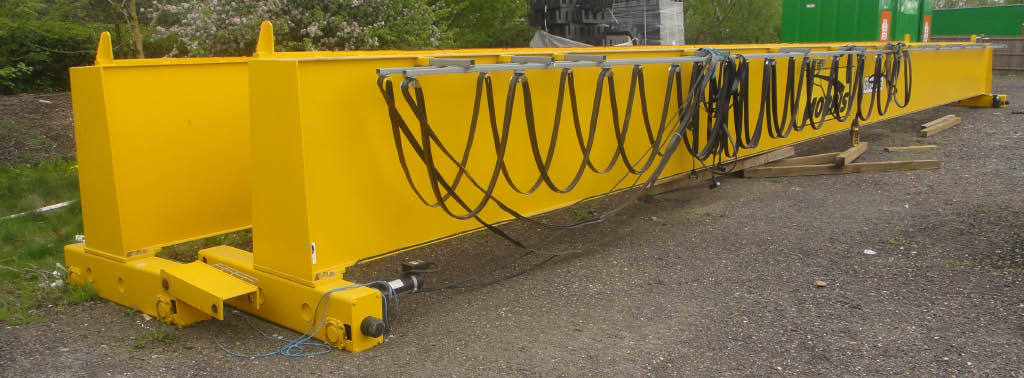

20 meter wide 25 tonne MORRIS gantry crane traversing the building
10 meter wide 10 tonne MORRIS gantry crane traversing the building
The building was new in 2006, all design drawings, elevations etc., are available.
The Building has been dismantled by the original builders, it is in storage and ready to relocate
All the purlings, main access doors, personnel access doors, and gantry cranes are included
There is NO cladding with this building and the building is stored undercover
The Building is for sale, ready for re-erection and offered subject to remaining unsold
We can assist with the loading, transport and shipping worldwide
|
|
|
|
 |
|
REF: |
SCBDM418 |
|
|
Shipping arranged:
»WORLDWIDE« |
|
|
|
|
|
 |
|
|
 |
|
|
